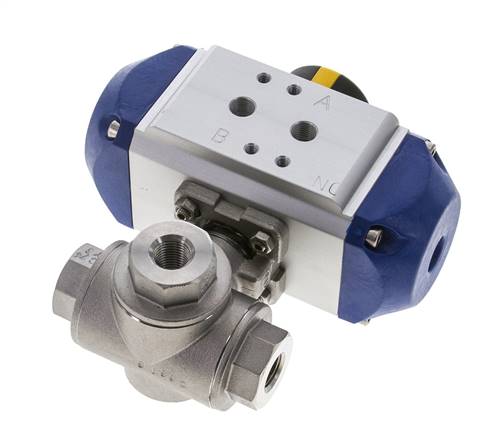

Pneumat. 3-way ball valve (T1), enosmerno delovanje, G 1/4", SS
Št. Izdelka:
KH 3/14 T1 PE ES
Opis artikla
Ball valve:
Materials:
Body: 1.4408, ball: 1.4408, seals: PTFE / FKM
Temperature range:
-20 do +180 °C
Properties:
Pressure inlet is possible from all the three sides
Media:
Water, oil, compressed air, vacuum (max. -0.9 bar), fuels, solvents, aggressive media
Optional:
Certificate 3.1
Rotary actuator:
Design:
ATEX-compliant Ex II 2GD c 85° C (drive with size 12 or greater: Ex II 2GD c 110° C)
Materials:
Body: anodised aluminium, rack and piston: aluminium, cover: acetal resin, seals: NBR
Temperature range:
-20°C to +80°C
Control pressure:
6 do 10 bar (lower pressures on request)
Optional:
FKM seal (-20°C up to max. +120°C) -V, direction of rotation changed -FO
Warning:
In case of high media temperatures, the actuator must be cooled if necessary!
Materials:
Body: 1.4408, ball: 1.4408, seals: PTFE / FKM
Temperature range:
-20 do +180 °C
Properties:
Pressure inlet is possible from all the three sides
Media:
Water, oil, compressed air, vacuum (max. -0.9 bar), fuels, solvents, aggressive media
Optional:
Certificate 3.1
Rotary actuator:
Design:
ATEX-compliant Ex II 2GD c 85° C (drive with size 12 or greater: Ex II 2GD c 110° C)
Materials:
Body: anodised aluminium, rack and piston: aluminium, cover: acetal resin, seals: NBR
Temperature range:
-20°C to +80°C
Control pressure:
6 do 10 bar (lower pressures on request)
Optional:
FKM seal (-20°C up to max. +120°C) -V, direction of rotation changed -FO
Warning:
In case of high media temperatures, the actuator must be cooled if necessary!
Lastnosti
| Izvedba | enosmerno delovanje |
| Luknja | T1 |
| Navoj krogelna pipa | G 1/4" |
| DN | 11 |
| Vgradna dolžina krogelna pipa | 79 |
| PN | -0,9 do 63 |
| Nadomestni pogoni | PDE 002-F03 |
Dodatne informacije o KH3/14T1PEES
| Teža | 1,5 kg / Kos |
| GTIN | 4050571415914 |
| Številka carinskega blaga | 84818081 |
| Skladno z RoHS | Da |
| Proizvajalec | Köly Deutschland |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 533) (PDF)
- Dokumentacijo: pneumatically actuated ball valves (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
