Opis artikla
Clamp width:
58 mm
Suitable:
Couplings to connect sand blast hoses without cross section constriction.
Materials:
Körper: malleable cast iron, zinc-plated, yellow chromated or nylon, seal: NBR
Temperature range:
-15 do +50 °C
Operating pressure:
12 bar
Scope of delivery:

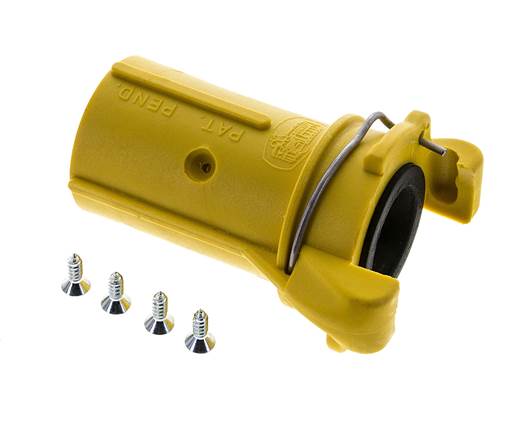

Malleable cast iron type: with retaining screws, nylon type: with retaining screws and automatic lock function
Recommended accessories for couplings made from malleable cast iron:
Safety clip or automatic safety
Warning:
Please note that the malleable cast iron couplings SSKIG 114 LG, SSKIG 112 LG, SSKIG G50 LG and the nylon coupling have an improved sealing system so that the hose or the thread is positioned right on the seal. The advantage is that the blasting abrasives cannot be compressed behind the seal. In the case of all other couplings, the hose is separated from the seal by a ridge.
58 mm
Suitable:
Couplings to connect sand blast hoses without cross section constriction.
Materials:
Körper: malleable cast iron, zinc-plated, yellow chromated or nylon, seal: NBR
Temperature range:
-15 do +50 °C
Operating pressure:
12 bar
Scope of delivery:
Malleable cast iron type: with retaining screws, nylon type: with retaining screws and automatic lock function
Recommended accessories for couplings made from malleable cast iron:
Safety clip or automatic safety
Warning:
Please note that the malleable cast iron couplings SSKIG 114 LG, SSKIG 112 LG, SSKIG G50 LG and the nylon coupling have an improved sealing system so that the hose or the thread is positioned right on the seal. The advantage is that the blasting abrasives cannot be compressed behind the seal. In the case of all other couplings, the hose is separated from the seal by a ridge.
Lastnosti
| Material | Najlon |
| Premer mehke cevi (znotraj x zunaj) | 19x33 |
| L | 110 |
| Rezervna tesnila | SSKGN GU 19 |
Dodatne informacije o SSKG19N
| Teža | 195 g / Kos |
| GTIN | 4050571643201 |
| Številka carinskega blaga | 84249080 |
| Skladno z RoHS | Da |
Dokumenti
- Catalogue page Atlas 9 (Page 335) (PDF)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
