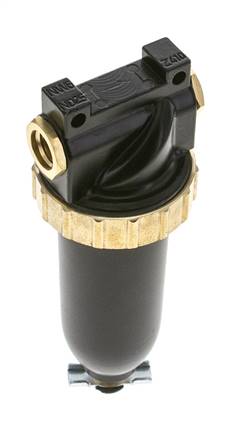

STANDARD Fini filter (pod-mikrofilter) G 1/4", Standard 1
Št. Izdelka:
DFX 11 M
Opis artikla
Application:
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.
Materials:
Body: Zinc die-casting Z410, condensate container: Polycarbonate, filter insert: Borosilicate microfibre fleece
Temperature range:
0°C to max. +50°C (metal bowl up to max. +90°C)
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Input pressure:
1.5 - 16 bar (with metal bowl 0 - 25 bar)
Condensate draining:
Semi-automatic** (metal container: manual)
Media:
Compressed air, neutral gases
Optional:
Version with protection cage (not series 5)-S, version with metal tank with manual drain (0 - 25 bar) -M
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.
Materials:
Body: Zinc die-casting Z410, condensate container: Polycarbonate, filter insert: Borosilicate microfibre fleece
Temperature range:
0°C to max. +50°C (metal bowl up to max. +90°C)
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Input pressure:
1.5 - 16 bar (with metal bowl 0 - 25 bar)
Condensate draining:
Semi-automatic** (metal container: manual)
Media:
Compressed air, neutral gases
Optional:
Version with protection cage (not series 5)-S, version with metal tank with manual drain (0 - 25 bar) -M
Lastnosti
| Izvedba | Fini filter (pod-mikrofilter) |
| Serija | Standard 1 |
| Navoj | G 1/4" |
| Pretok* | 610 |
| Izvedba zbiralnika | Kovinska posoda brez prozorne cevi |
| Izpust kondenzata | ročni |
| Pritrdilni nosilec | ZW DFX 10 |
| Rezervni filter 0,01 µm | FILTER DFX 10 |
| Vhodni tlak | 0 - 25 |
| Temperaturno območje | 0 do +90 |
| Maks. količina kondenzata | 12 |
| H | 154 |
| H1 | 135 |
| L | 57 (Ø 56) |
Dodatne informacije o DFX11M
| Teža | 460 g / Kos |
| GTIN | 4050571248444 |
| Številka carinskega blaga | 84213925 |
| Skladno z RoHS | Da |
Dokumenti
- Catalogue page Atlas 9 (Page 605) (PDF)
- Dokumentacijo: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*measured at P1 = 6 bar and 0.2 bar pressure drop
**as soon as the input pressure falls below the minimum. input pressure, the drain valve opens automatically.
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
