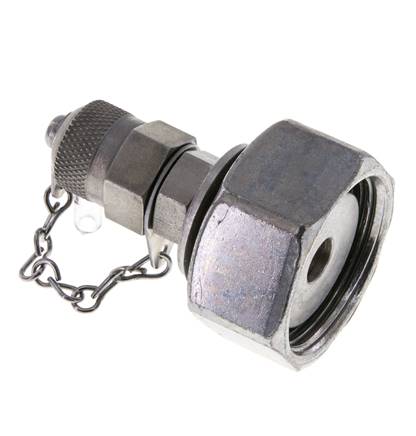

Test coupling M16x2 , 28 L-sealing cone, Jeklo, pocinkano
Št. Izdelka:
ME DKO 28 L
Opis artikla
Materials:
Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR
Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM
Temperature range:
-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR
Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM
Temperature range:
-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
Lastnosti
| Material | Jeklo, pocinkano |
| Serija | prazna serija |
| Premer trde cevi (zunaj) | 28 L |
| Navoj prekrivne matice | M 36x2 |
| Obratovalni tlak | 160 |
| Temperaturno območje | od -20 do +100 |
| Vgradna višina | 61 |
Dodatne informacije o MEDKO28L
| Teža | 270 g / Kos |
| GTIN | 4050571485702 |
| Številka carinskega blaga | 84812010 |
| Skladno z RoHS | Da |
Dokumenti
- Catalogue page Atlas 9 (Page 676) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
