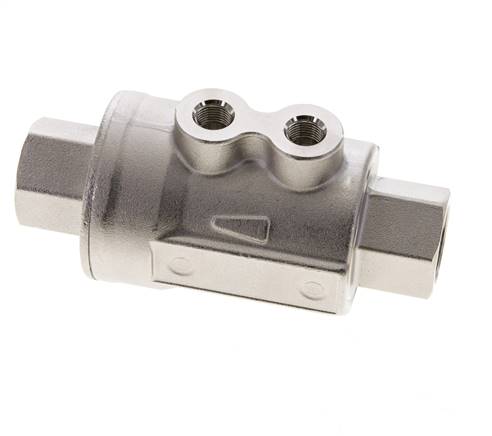

VIP-blocking valve, dvojno delovanje, G 1/2", Medenina
Št. Izdelka:
VIP 12 MS
Opis artikla
Materials:
Body and piston: nickel-plated brass, seals: NBR
Temperature range:
-20°C to max. +80°C (with FKM seal -20°C to max. +150°C)
Operating pressure:
-0.95 to 10 bar
Control connection:
2x G 1/8” (female thread)
Media:
Water, compressed air, vacuum
Optional:
FKM seal (-20°C up to max. +150°C) -V
Advantages:
•flow as for ball valve,
•short switching times,
•compact design,
•any installation position,
•low price
Body and piston: nickel-plated brass, seals: NBR
Temperature range:
-20°C to max. +80°C (with FKM seal -20°C to max. +150°C)
Operating pressure:
-0.95 to 10 bar
Control connection:
2x G 1/8” (female thread)
Media:
Water, compressed air, vacuum
Optional:
FKM seal (-20°C up to max. +150°C) -V
Advantages:
•flow as for ball valve,
•short switching times,
•compact design,
•any installation position,
•low price
Lastnosti
| Material | Medenina |
| Izvedba | dvojno delovanje |
| G | G 1/2" |
| DN | 15 |
| L | 112 |
| H | 60 |
| Temperaturno območje | od -20 do +80 |
| Krmilni tlak | 3 - 8,5 |
| Kompleti tesnil (NBR) | VIP 12 REP-NBR |
| Kompleti tesnil (FKM) | VIP 12 REP-FKM |
| Adapter Namur | VIP NAMUR |
Dodatne informacije o VIP12MS
| Teža | 800 g / Kos |
| GTIN | 4050571720131 |
| Številka carinskega blaga | 84812090 |
| Skladno z RoHS | Da |
Dokumenti
- Catalogue page Atlas 9 (Page 530) (PDF)
- Dokumentacijo (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
