Item group

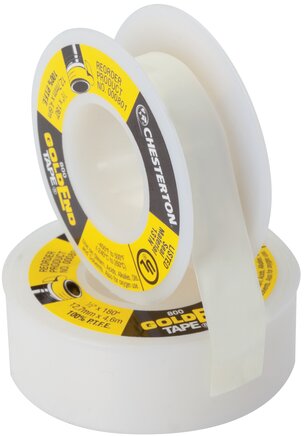

PTFE sealing tape, highest quality

Application:

Extremely high-density thread sealing tape for high-quality thread sealing up to 690 bar (liquids max. 690 bar, liquid oxygen max. 300 bar, gases max. 170 bar)

Temperature range:

-240 to +260 °C

Media:

Air, water, nitrogen, gas, propane, butane, ammonia, hydrogen, oxygen, solvents, acids, alkalis, fuels, refrigerants, steam

Density:

approx. 100 g/m²

Approvals:

UL, MIL-T-27730A, FDA 21 CFR 177.1615, NSF H1 (Reg. 134016), BAM for oxygen (max. 30 bar, max. +100°C)

Class:

GRp

Advantages:

•threaded connection can be adjusted up to 90°,
•approved for oxygen
•requires less windings,
• minimises the danger of clogging of the pipelines due to a high resistance to tears and fractures.

Documents:

More information Less information

Filter items

Stroke [mm]
Please select
Piston diameter
Please select
Guide
Please select
Operating pressure [bar]
Please select
more filters
PTFE sealing tape, highest quality:
3 of 3 articles
PTFE sealing tape, GRp, highest quality, 4,6 m(DB TFL)
DB TFL
PTFE sealing tape, GRp, highest quality, 4,6 m
€33.53 incl. VAT
(€7.29 per m)
Immediately available
PTFE-Dichtband, GRp, höchste Qualität, 13,7 m(DB TFL-13)
DB TFL-13
PTFE-Dichtband, GRp, höchste Qualität, 13,7 m
€85.66 incl. VAT
(€6.25 per m)
Immediately available
PTFE-Dichtband, GRp, höchste Qualität, 32,9 m(DB TFL-33)
DB TFL-33
PTFE-Dichtband, GRp, höchste Qualität, 32,9 m
€197.41 incl. VAT
(€5.98 per m)
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
