Skupina artiklov

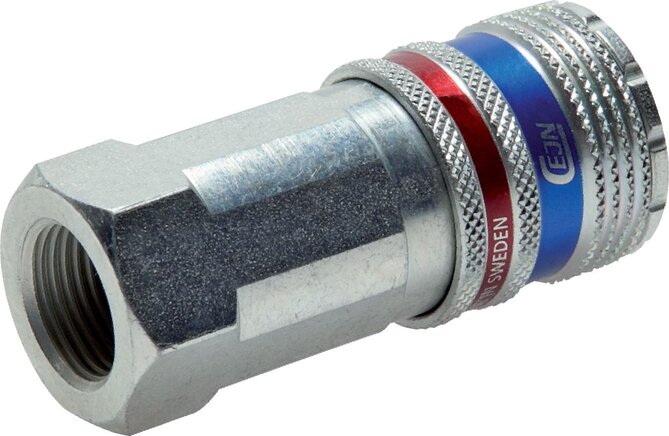

CEJN varnostne prikljucnice z notranjim navojem, NW 10

Materials:

Body: zinc-plated steel, zinc-plated brass, seal: NBR

Temperature range:

-20 do +80 °C

Operating pressure:

0 do 16 bar

Flow*:

4000 l/min

Function:

The coupling occurs as for standard couplings, by inserting the push in nipple into the coupling socket. The decoupling occurs by pushing the unlocking sleeve back. The coupling socket then closes and ventilates the coupling plug when this is still held in the coupling socket. The coupling socket only releases the plug when the residual pressure on the plug side has fallen below a pressure of approx. 0,3 bar. As such, the dangerous recoil effect will be reliably (depending on the pressure present on the plug side) prevented.

Recommendation:

Use coupling plugs made of hardened steel!

Compatible with**:

Rectus (27, 41, 1700, 1727), TEMA (1700), CEJN (410)
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

Dokumenti:

Več informacij Manj podatkov
CEJN varnostne prikljucnice z notranjim navojem, NW 10:
3 od 3 izdelkov
Takoj dobavljivo
ponovno na voljo v ⌀ 5 tednih
Takoj dobavljivo
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
