Skupina artiklov

Spojke, peskane z notranjim navojem, 58 mm

Clamp width:

58 mm

Suitable:

Couplings to connect sand blast hoses without cross section constriction.

Materials:

Körper: malleable cast iron, zinc-plated, yellow chromated or nylon, seal: NBR

Temperature range:

-15 do +50 °C

Operating pressure:

12 bar

Scope of delivery:

Malleable cast iron type: with retaining screws, nylon type: with retaining screws and automatic lock function

Recommended accessories for couplings made from malleable cast iron:

Safety clip or automatic safety

Warning:

Please note that the malleable cast iron couplings SSKIG 114 LG, SSKIG 112 LG, SSKIG G50 LG and the nylon coupling have an improved sealing system so that the hose or the thread is positioned right on the seal. The advantage is that the blasting abrasives cannot be compressed behind the seal. In the case of all other couplings, the hose is separated from the seal by a ridge.

Dokumenti:

Več informacij Manj podatkov
Spojke, peskane z notranjim navojem, 58 mm:
9 od 9 izdelkov

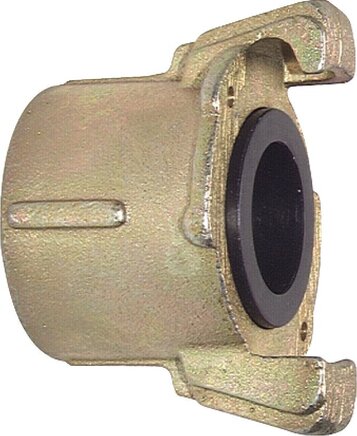

Sandblast coupling Temprana litina pocinkana, G 1-1/4" (Female thread)(SSKIG 114)
SSKIG 114
Sandblast coupling Temprana litina pocinkana, G 1-1/4" (Female thread)
31,27 € z DDV
Takoj dobavljivo
Sandblast coupling Temprana litina pocinkana, G 1-1/4" (Female thread)(SSKIG 114 LG)
SSKIG 114 LG
Sandblast coupling Temprana litina pocinkana, G 1-1/4" (Female thread)
31,93 € z DDV
Takoj dobavljivo
Sandblast coupling Temprana litina pocinkana, G 1-1/2" (Female thread)(SSKIG 112)
SSKIG 112
Sandblast coupling Temprana litina pocinkana, G 1-1/2" (Female thread)
31,93 € z DDV
Takoj dobavljivo
Sandblast coupling Temprana litina pocinkana, G 1-1/2" (Female thread)(SSKIG 112 LG)
SSKIG 112 LG
Sandblast coupling Temprana litina pocinkana, G 1-1/2" (Female thread)
34,31 € z DDV
Takoj dobavljivo
Sandblast coupling Temprana litina pocinkana, G 2" (Female thread)(SSKIG 20)
SSKIG 20
Sandblast coupling Temprana litina pocinkana, G 2" (Female thread)
64,00 € z DDV
Takoj dobavljivo
Sandblast coupling Temprana litina pocinkana, Grobi navoj 50mm (Female thread)(SSKIG G50)
SSKIG G50
Sandblast coupling Temprana litina pocinkana, Grobi navoj 50mm (Female thread)
34,99 € z DDV
Takoj dobavljivo
Sandblast coupling Temprana litina pocinkana, Grobi navoj 50mm (Female thread)(SSKIG G50 LG)
SSKIG G50 LG
Sandblast coupling Temprana litina pocinkana, Grobi navoj 50mm (Female thread)
35,65 € z DDV
Takoj dobavljivo

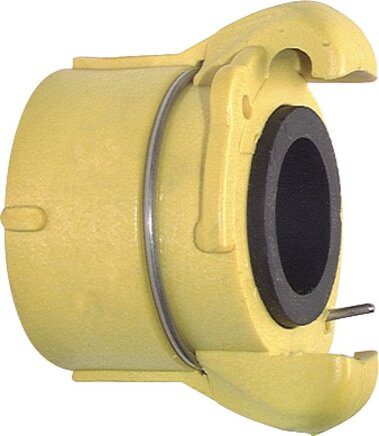

Sandblast coupling Najlon, G 1-1/4" (Female thread)(SSKIG 114 N)
SSKIG 114 N
Sandblast coupling Najlon, G 1-1/4" (Female thread)
84,85 € z DDV
Takoj dobavljivo
Sandblast coupling Najlon, Grobi navoj 50mm (Female thread)(SSKIG G50 N)
SSKIG G50 N
Sandblast coupling Najlon, Grobi navoj 50mm (Female thread)
91,53 € z DDV
Takoj dobavljivo
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
