Skupina artiklov
Vtikac s cevnim navojnim prikljuckom in pregradnim vijacnim prikljuckom, NW 2,7
YouTube videi:
Materials:
Body: brass, nickel-plated brass or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 do 35 bar
Flow*:
165 l/min (Option -BA: 150 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (20, 91), Walther (06-003), Festo (KD2/KS2), IMI-Norgren (232), Aventics (CP1-NW 2,7)
Optional:
with valve for double-sided shut-off -BA
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.
**Names and designations are partly trademarks of the manufacturers entered.
Dokumenti:
Več informacij
Filtriraj artikle
več filtrov
Vtikac s cevnim navojnim prikljuckom in pregradnim vijacnim prikljuckom, NW 2,7:
8 od 8 izdelkov
KSSS 3 NW2,7

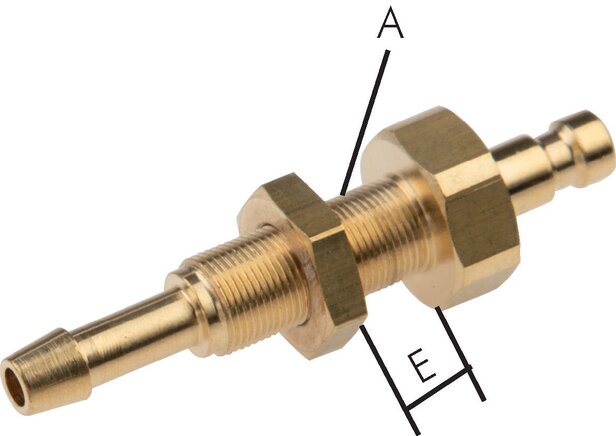

Bulkhead coupling plug (NW2,7) 3mm hose, Medenina
9,73 €
z DDV
KSSS 4 NW2,7
Bulkhead coupling plug (NW2,7) 4mm hose, Medenina
9,73 €
z DDV
KSSS 3 NW2,7 MSV

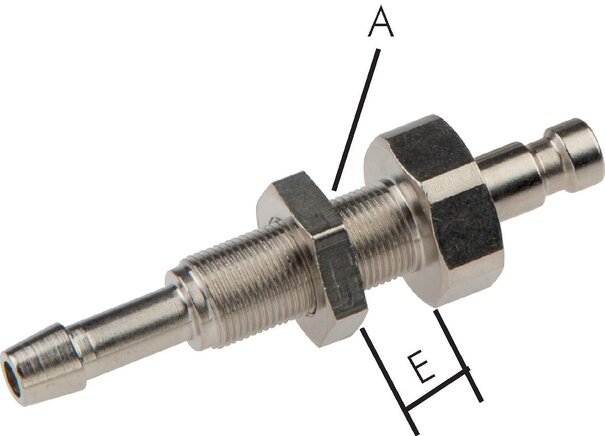

Bulkhead coupling plug (NW2,7) 3mm hose, Nikljana medenina
10,70 €
z DDV
KSSS 4 NW2,7 MSV
Bulkhead coupling plug (NW2,7) 4mm hose, Nikljana medenina
11,47 €
z DDV
KSSS 3 NW2,7 BA
Bulkhead coupling plug (NW2,7) 3mm hose, Medenina
32,02 €
z DDV
KSSS 4 NW2,7 BA
Bulkhead coupling plug (NW2,7) 4mm hose, Medenina
34,55 €
z DDV
KSSS 3 NW2,7 MSV BA
Bulkhead coupling plug (NW2,7) 3mm hose, Nikljana medenina
31,64 €
z DDV
KSSS 4 NW2,7 MSV BA
Bulkhead coupling plug (NW2,7) 4mm hose, Nikljana medenina
32,51 €
z DDV
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
