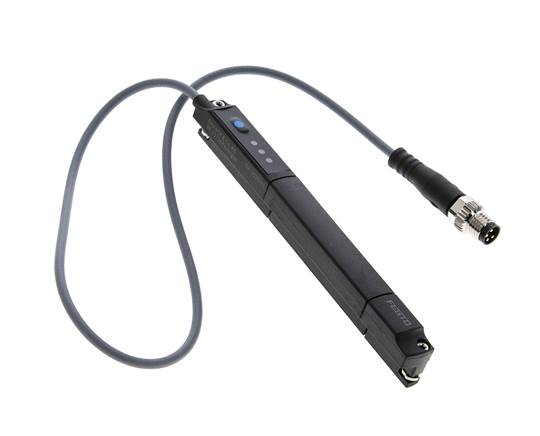

SDAT-MHS-M100-1L-SA-E-0.3-M8 (1531267) position transmitter

Číslo výrobku:

OT-FESTO057280

Všechny druhy zboží této skupiny
358,44 € vč. DPH
ks
vlastnosti
De­sign For T-​slot
Per­mis­sion RCM mark,
c UL us - Lis­ted (OL)
CE cer­ti­fi­cate (see dec­la­ration of con­for­mity) to EU EMC di­rective
KC-​mark KC-​EMV
Ma­te­rial in­for­mation ha­lo­gen free,
RoHs com­pli­ant
Me­a­su­red pa­ra­me­ter Po­si­tion
Me­a­su­re­ment prin­ci­ple Hall mag­ne­tic
Re­cor­ding range [µm] 0 to 100000
am­bi­ent tem­pe­ra­ture [°C] -25 to 70
Sam­pling in­ter­val type [ms] 1
Max. mo­ve­ment speed [m/s] 3
Re­so­lu­tion tra­vel [mm] 0,05
Re­pe­a­ta­bi­lity [mm] 0,1
Con­t­rol out­put PNP
Swit­ching ele­ment function Ope­ner/clo­ser swit­chable
Switch on time [ms] < 2 ms
Switch off time [ms] < 2 ms
Max. swit­ching frequency [Hz] 1.000
Max. out­put current [mA] 100
Max. swit­ching ca­pa­city DC [W] 2,7
Vol­tage drop [V] 2,5
Ana­lo­gue out­put 4 - 20 mA
Sensi­ti­vity current out­put [mA/mm] 0,160
Li­nea­rity error ty­pi­cal in ± mm ±0.25 mm
Max. load re­sistance current out­put [Ohm] 500
Short ci­r­cuit re­sistance yes
Over­load re­sistant Avai­la­ble
Re­port I-​port,
IO-​Link
IO-​Link, re­port De­vice V 1.1
IO-​Link, pro­file Smart sen­sor pro­file
IO-​Link, function clas­ses Teach chan­nel,
Di­a­gno­sis,
Iden­ti­fi­cation,
Bi­nary data chan­nel (BDC),
Pro­cess data va­ri­a­bles (PDV)
IO-​Link, com­mu­ni­cation mode COM3 (230.4 kBaud)
IO-​Link, SIO mode sup­port yes
IO-​Link, port type A
IO-​Link, pro­cess data width IN 2 Bytes
IO-​Link, pro­cess data con­tents IN 12 bit PDV (po­si­tion me­a­su­re­ment),
4 bit BDC (po­si­tion mo­ni­to­ring)
IO-​Link, mi­ni­mum cycle time 1 ms
Ope­ra­ting vol­tage range DC [V] 15 to 30
re­si­dual rip­ple 10 %
Re­verse po­la­rity pro­tection for all elect­ri­cal con­necti­ons
Elect­ri­cal con­nection 1, con­nection type Cable with plug
Elect­ri­cal con­nection 1, con­nection tech­no­logy M8x1 A coded to EN 61076-​2-104
Elect­ri­cal con­nection 1, num­ber of pins / wires 4
Elect­ri­cal con­nection 1, fas­te­ning type Screw lock
Con­nection out­let di­rection along
Plug con­tacts ma­te­rial Cop­per allow,
Gold pla­ted
Test con­di­ti­ons line Ben­ding ra­dius stren­gth to Festo stan­dard,
Cable track: 5 mil­lion cycles, ben­ding ra­dius 28 mm,
Tor­si­o­nal stren­gth > 300,000 cycles, ±270°/0.1 m
Cable len­gth [MTR] 0,3
Line pro­per­ties Cable track+robot
Cable shield co­lour Grey
Cable sle­eve ma­te­rial TPE-U(PUR)
Fas­te­ning type In­ser­table from above into the slot,
Per­ma­nently screwed
in­stallation po­si­tion ar­bit­rary
Housing ma­te­rial High-​alloyed sta­in­less ste­els,
PA re­in­for­ced,
brass nickel-​plated,
Po­ly­es­ter
Loc­king nut ma­te­rial Nickel-​plated brass
Foil ma­te­rial Po­ly­es­ter
Operation-​readiness dis­play LED green
Swit­ching sta­tus in­di­ca­tor LED yellow
Sta­tus dis­play LED red
Setting op­ti­ons IO-​Link,
But­ton
Am­bi­ent tem­pe­ra­ture for mo­ving cable pla­ce­ments [°C] -20 to 70
Pro­tection ca­te­gory IP65,
IP68
Další informace k OT-FESTO057280
hmotnost 85 g / ks
GTIN 4052568238094
Celní číslo zboží 90318020
výrobce Festo
Dokumenty
