  5. M 2340 ES 115V

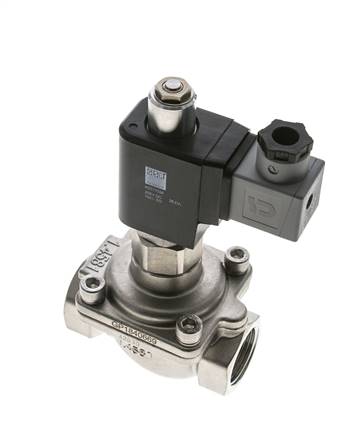

2/2-way SS solenoid valve G 3/4", 0-16 bar, normally closed (NC)

Item number:

M 2340 ES 115V

All items of this group
€897.93 incl. VAT
pcs
Item description
Materials:
 Bodies: 1.4581 (internal parts 1.4104), seal: FKM

Temperature range:
 -10 to +80 °C, environment: max. +35 °C

Media:
 Compressed air, neutral gases, water, neutral low-viscosity media, other media on request

Operating pressure:
 0 to 16 bar

Installation position:
 With upright magnets, opened without power (NO), also with horizontal magnets

Control voltages:
 Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
 ± 10 %

Protection class:
 IP 65

Information:
 These valves are always supplied with a solenoid coil and a connector plug.
Properties
Con­trol volt­age 115 V AC
func­tion nor­mally closed (NC)
Thread G 3/4"
DN [mm] 25
L [mm] 95
Kv value* [l/min] 180
Power con­sump­tion (AC) [VA] 29
Struc­tural shape so­le­noid coil C
Spare so­le­noid coil MAG C 115V
Further information on M2340ES115V
Weight 1,7 kg / pcs
GTIN 4050571476601
Customs duty number 84812090
Documents
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
